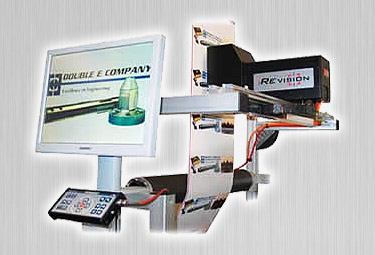

systems de inspection de bobines

Double E / Re web inspection systems focus on color fidelity and image quality, and boast many advantages over existing video inspection systems, including:


  • Unmatched color accuracy, image quality, and image stability.
  • Uses completely digital technology.
  • Image reconstruction (tiling) on LD models.
  • CMOS sensor is equivalent to virtual 3 chip CCD.
  • 1024 x 768 LCD or CRT display.
  • 24V power supply to camera and PC.
  • Horizontal and vertical split screen functions for rapid comparisons.
  • 90° image rotation through four positions.
  • Face and verso inspection using two cameras and the split-screen function.
  • Windows XP with FLASH memory on the PC.
WEB INSPECTION SYSTEMS - GENERAL SPECIFICATIONS
Model Viewing Area Zoom Image Saving Email / Reconstruction
RF <2.95” x 3.54”
(75 x 90 mm)<		 10x 1 No
MH–100 2.95” x 3.54”
(75 x 90 mm)		 10x 8 No
MH–100 <3.94” x 5.12”
(100 x 130 mm)		 20x 8 No
LD–75* 2.95” x 3.54”
(75 x 90 mm)		 20x 8 + 1
(x 10 jobs) 		Yes
LD–100* 3.94” x 5.12”
(100 x 130 mm)		 20x 8 + 1
(x 10 jobs)		 Yes
systems de inspection de bobines
Re Web Guiding Systems
Shifting actuators, pivot guides, and steering roll solutions. Click here
Re Web Tension Control Systems
Various tension control systems available using load cells, dancers, ultrasonic sensors, and amplifiers. Click here
Re Brakes
"Combiflex" pneumatic and "Eleflex" electromagnetic powder brakes. Click here


Please click here if you would like a quote on a web inspection system.
