Aluminum Rollers

More Info

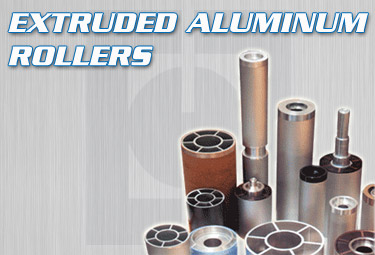

"Texroll" Extruded Aluminum Rollersrouleaux en aluminium

All profiles configured as shown.
(6 arms with 60 degree center angles)
except for the 60mm profile
(8 arms with 45 degree center angles)
rouleaux en aluminium

“Texroll” aluminum rollers are designed to provide low rotational inertia, with little deflection. This performance is accomplished with a unique aluminum extrusion that yields an excellent strength to weight ratio.


Live shaft models (with fixed journals) or dead shaft models (roller rotates with bearings on a fixed inner shaft) are both standard options.

Standard diameters for aluminum rollers range from 60 mm up to 200 mm, with lengths that can exceed 7000 mm. Rollers can be dynamically balanced and mechanically straightened to customer specifications, and they can be finished with various surface treatments and coatings. We offer a standard set of sizes, but custom manufacturing is possible.

Live Shaft Journal Characteristics
A chart is available on this page showing extrusion diameters for live shaft. Click here.
Dead Shaft Journal Characteristics
A chart is available on this page showing extrusion diameters for dead shaft.
Click here.
Available Belt Driven Engagements
Easily run multiple core sizes when step chucks aren't possible. Click here.


rouleaux en aluminium
Spreader Rollers
Click here.
Bowed Rollers
Click here.
Carbon Fiber Rollers
Click here.

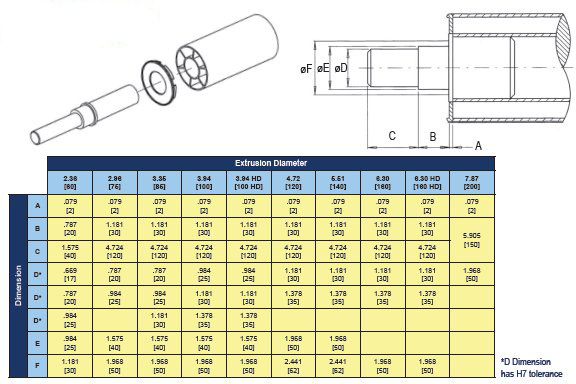

Live Shaft Journal Characteristics

rouleaux en aluminium

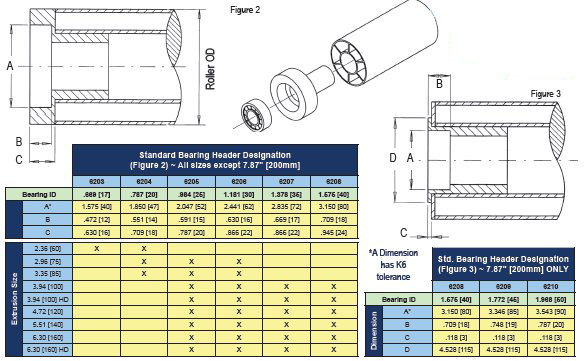

Dead Shaft Header and Bearing Characteristics

rouleaux en aluminium

Available Belt–Driven Engagements for Aluminum Rollers

V-Belt
Flat Belt
rouleaux banane

Please click here if you would like more information, or if you would like a quote on aluminum rollers.
